Singlemode-Fasern

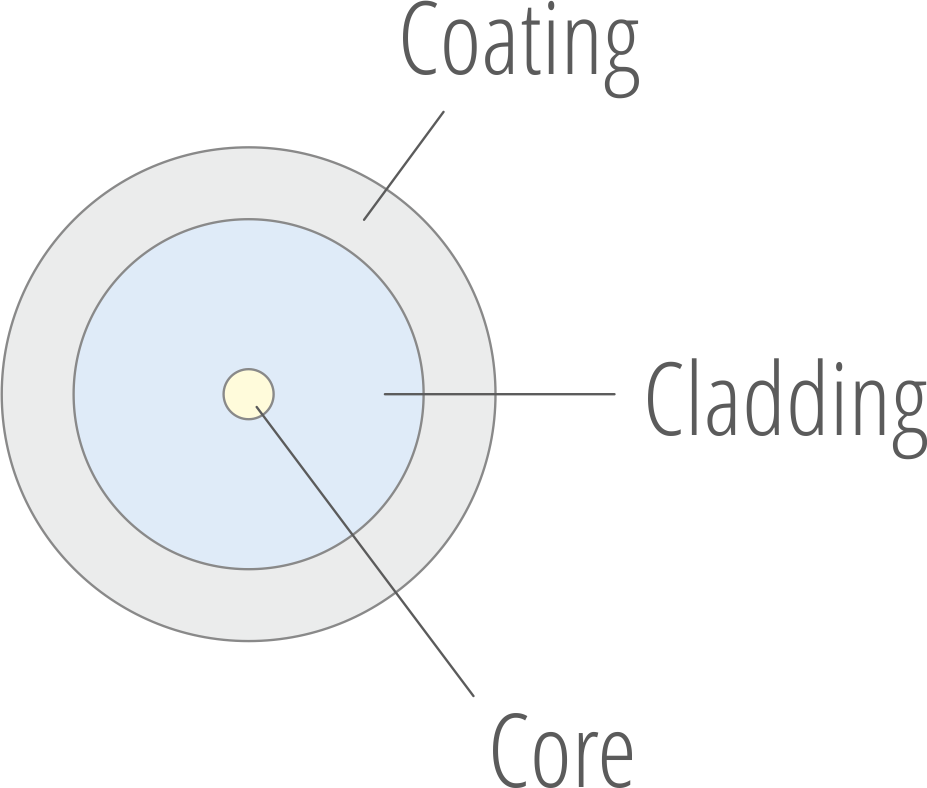

Singlemode-Fasern – auch Monomode-Fasern oder Einmoden-Fasern – sind vor allem bei Anwendungen im Einsatz, bei denen Signale verlustarm über lange Strecken hinweg gesendet werden sollen. Im Vergleich zu Multimode-Fasern haben Singlemode-Fasern einen kleineren Kern, sodass das Licht nur eine Ausbreitungsform (Mode) annehmen kann.

Corning® Optical Fiber sind vor allem auf Anwendungen in der Telekommunikation zugeschnitten.

Corning® Specialty Fiber eignen sich für eine große Bandbreite an spezialisierten Anwendungen, beispielsweise in der Medizintechnik, Signal- und Lichttechnik, Messtechnik oder Luft- und Raumfahrt.

Produkt­gruppen:

Corning® Optical Fiber Productsheet

Corning® Specialty Fiber Productsheet

Corning® Optical Fiber

Corning’s suite of optical single-mode fibers include:*

  • SMF-28e+® optical fibers is a Premier standard single-mode fiber, ITU-T G.652.D-compliant.
  • SMF-28® Ultra optical fibers is an ITU-T Recommendation G.652.D compliant optical fiber with Corning’s enhanced low-loss and bend fiber technologies.
  • SMF-28® ULL optical fibers has the lowest loss of any terrestrial-grade, single-mode fiber with a maximum attenuation of 0.17 dB/km at 1550 nm.
  • Optimized for long-haul and metro networks, LEAF® optical fibers is a technically advanced product that provides high capacity, broad system flexibility, and superior performance.
  • ClearCurve® LBL / ClearCurve® ZBL optical fibers is a full-spectrum fiber with enhanced macrobend performance compared to traditional bend-improved single-mode fibers.
  • ClearCurve® SMBI-5-XMT / ClearCurve® SMBIH-5-XMT optical fibers with easy to handle coatings designed for use in elevated temperature applications.

*(Auszug aus Corning® Produktflyern)

Angebot für Lichtwellenleiter anfragen

Spezifikationen

Name

Reduced cladding

Cladding diameter (µm)

Coating diameter (µm)

Cutoff wavelength (nm)

Operating wavelength (nm)

NA

Product­sheet

SMF-28e+®

✗

125 ± 0.7

242 ± 5

≤ 1260

1310, 1550

0.14

SMF-28® Ultra

✗

125 ± 0.7

242 ± 5

≤ 1260

1310

0.14

SMF-28® ULL

✗

125 ± 0.7

242 ± 5

≤ 1260

1310-1550

0.14

SMF-28® Contour Pro

✗

125 ± 0.7

188 ± 5

≤ 1260

1310, 1550

0.14

SMF-28® Contour Fit

✗

125 ± 0.7

188 ± 5

≤ 1260

1310, 1550

0.14

LEAF®

✗

125 ± 0.7

242 ± 5

≤ 1360

1550

0.14

Clear­Curve® LBL

✗

125 ± 0.7

242 ± 5

≤ 1260

1310

0.14

Clear­Curve® ZBL

✗

125 ± 0.7

242 ± 5

≤ 1260

1310

0.14

TXF®

✗

125 ± 0.7

242 ± 5

≤ 1520

1550

–

ClearCurve® SMBI-5-XMT

✗

125 ± 1.0

245 ± 10

≤ 1260

1310, 1550

0.12

ClearCurve® SMBIH-5-XMT

✗

125 ± 1.0

245 ± 10

≤ 1260

1310, 1550

0.12

Corning® Specialty Fiber

Corning’s suite of special single-mode fibers include:*

  • Low wavelength RGB 400 single-mode fiber for sensors in Red-Green-Blue wavelengths.
  • HI 780 / HI 1060 specialty fibers. For low loss fused couplers, high performance components and small footprint assemblies.
  • HI 980 specialty fibers. Industry standard for 980 pump pigtails for high performance components and small footprint assemblies.
  • RC HI 980 / RC HI 1060 specialty fibers. Reduced cladding.
  • HI 1060 FLEX specialty fibers. High performance WDM components and ultra-low bend loss applications. Bend insensitive.
  • RC HI 1060 FLEX specialty fibers. Reduced cladding & bend insensitive.
  • RC 1300 / RC 1550 specialty fibers. Reduced cladding fiber for small size coils and assemblies.
  • RC SMF specialty fibers which is an 80 micron clad design for small form factor applications.

*(Auszug aus Corning® Produktflyern)

Angebot für Lichtwellenleiter anfragen

Spezifikationen

Name

Reduced cladding

Cladding diameter (µm)

Coating diameter (µm)

Cutoff wavelength (nm)

Operating wavelength (nm)

NA

Product­sheet

RGB 400

✗

125 ± 0.5

245 ± 10

400 ± 50

450 – 700

0.12

HI 780

✗

125 ± 0.5

245 ± 10

720 ± 50

> 780

0.14

HI 980

✗

125 ± 0.5

245 ± 10

930 ± 50

> 980

0.21

RC HI 980

✓

80 ± 1

165 ± 10

930 ± 50

> 980

0.21

HI 1060

✗

125 ± 0.5

245 ± 10

920 ± 50

> 980

0.14

RC HI 1060

✓

80 ± 1

165 ± 10

920 ± 50

> 980

0.14

HI 1060 FLEX

✗

125 ± 0.5

245 ± 10

930 ± 40

> 980

0.17

RC HI 1060 FLEX

✓

80 ± 1

165 ± 10

930 ± 40

> 980

0.22

RCBI 1310

✓

80.05 ± 0.5

165 ± 10

≤1260

1310, 1550

–

RCBI 1550

✓

80.05 ± 0.5

165 ± 10

≤1520

1550

–

RC SMF

✓

80 ± 1

165 ± 10

≤ 1290

> 1300

0.12
