Multimode-Fasern

Multimode-Fasern sind vor allem bei Anwendungen im Einsatz, bei denen Signale nur über kurze Strecken hinweg übertragen werden müssen. Beispiele sind Firmen- oder Campusnetzwerke. Im Gegensatz zu Singlemode-Fasern können sich im Kern von Multimode-Fasern mehrere Tausend Moden ausbreiten. Dadurch ist eine deutlich höhere Leistungsübertragung möglich, die auch in der Lasertechnik genutzt wird. Bei langen Distanzen kommt es allerdings zu Dispersionseffekten, also Signalverfälschungen. Daher sind bei großen Strecken Singlemode-Fasern das Produkt der Wahl.

Increases bendability, maintains reliability*

  • InfiniCor®
    In today’s business environment, communication must be instant, with large quantities of data transmitted effortlessly, at the touch of a button. With a large 62.5 µm core and precise profile control, InfiniCor® multimode optical fiber delivers high performance with LED protocols. It optimizes performance in legacy enterprise, local area, and storage area networks, as well as in central office interconnects.

  • ClearCurve® Multi-mode Optical Fiber Corning® ClearCurve® ultra-bendable, laser-optimized multimode optical fiber delivers enhanced macrobending performance while maintaining compatibility with current optical fibers, equipment, practices and procedures. ClearCurve® OM2, OM3, and OM4 multimode fibers are designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber.

*(Auszug aus Corning® Produktflyern)

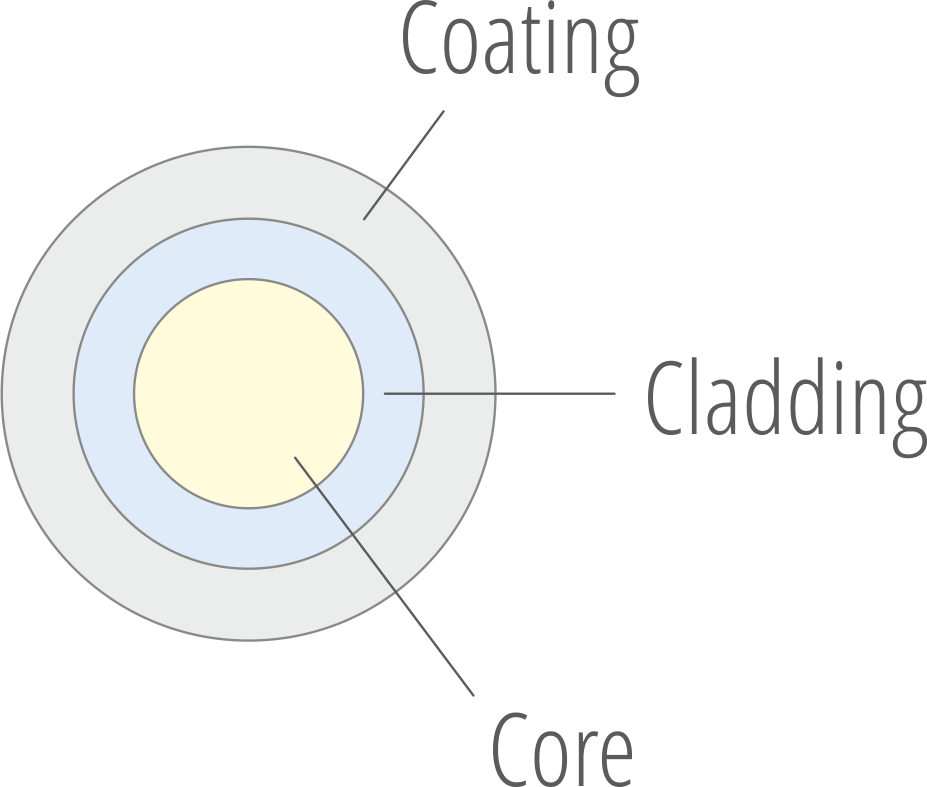

Spezifikationen

Name

Reduced cladding

Operating wavelength (nm)

Cladding diameter (µm)

Coating diameter (µm)

NA

Produkt­sheet

InfiniCor® 300

850-1300

125 ± 2

242 ± 5

0.275 ± 0.015

ClearCurve® OM2

850-1300

125 ± 1

242 ± 5

0.20 ± 0.015

ClearCurve® OM3

850-1300

125 ± 1

242 ± 5

0.20 ± 0.015

ClearCurve® OM4

850-1300

125 ± 1

242 ± 5

0.20 ± 0.015

ClearCurve® OM5

850-1300

125 ± 1

242 ± 5

0.20 ± 0.015

ClearCurve® MM50BI-XMT

850, 1060, 1300

125 ± 2

245 ± 10

0.20 ± 0.015

ClearCurve® MM50BIH-XMT

850, 1060, 1300

125 ± 2

245 ± 10

0.20 ± 0.015
